UltraCMOS® SPDT RF Switch

PE42523

RF Switch, SPDT, 9 kHz to 26.5 GHz, 1.15 dB IL, 22- 63 dB Isolation, 30 dBm Pwr Rating

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

Part number PE42523 Product Type RF Switch from Manufacturer pSemi

Description:

The PE42523 is a HaRP™ technology-enhanced absorptive SPDT RF switch that supports a broad frequency range from 9 kHz to 26.5 GHz. This broadband general purpose switch is a pin-compatible version of the PE42522 with faster switching time and settling time. It offers excellent isolation, high linearity performance and has exceptional settling time making this device ideal for many broadband wireless applicatlions. No blocking capacitors are required if DC voltage is not present on the RF ports.

Part Number:

PE42523

Type >>RF Switch:

Single Pole

Function:

SPDT

Impedance:

50 Ohms

Insertion Loss Min:

0.75 dB

Insertion Loss Max:

7.3 dB

Power Rating:

30 dBm

Package:

4 X 4 X .9 mm

	Application Note AN57	Thermal Characterization
	Schematic/B.O.M.	Evaluation Kit Schematic and Bill of Materials
	Datasheet	Product specification datasheet
	Application Note AN41	High Frequency Performance Improvement Through Narrowband Matching
	S-Parameters	S-Parameters zip file
	Material Declaration	Material Declaration form

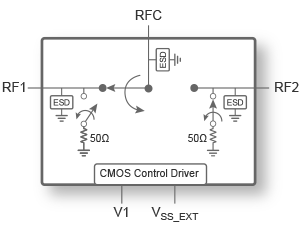

	Schematic	Schematic drawing for PE42523,UltraCMOS® SPDT RF Switch

Part Function	Part Number	Description
Replacement	PE42524 pSemi	RF Switch, SPDT. 0.01 to 40 GHz, 0.6- 5.5 dB IL, 33- 84 dB Isolation, 32.5 dBm Pwr Rating, Flip Chip

Technical Inquiry Request for PE42523 RF Switch

Fields marked with * are required.

Product Specifications For PE42523 RF Switch

Part Number: PE42523 Manufacturer: pSemi Product Description: RF Switch, SPDT, 9 kHz to 26.5 GHz, 1.15 dB IL, 22- 63 dB Isolation, 30 dBm Pwr Rating

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Pricing Available Upon Request. Request a Pricing Quote

Product Notices

No Current Notices

Key Features:

Broad frequency support from 9 kHz to 26.5 GHz
High port to port isolation
- 63 dB @ 3 GHz
- 58 dB @ 7.5 GHz
- 39 dB @ 13.5 GHz
- 28 dB @ 20 GHz
- 22 dB @ 26.5 GHz
HaRP™ technology enhanced
- Fast settling time
- No gate and phase lag
- No drift in insertion loss and phase
Improved high frequency insertion loss and return loss performance with external matching
High ESD performance of 2.5 kV HBM on all pins
Packaging – 29-lead 4 × 4 mm LGA

Replacement Part(s) Suggested

The part PE42523 is discontinued, below is the suggested replacement part.

Part Number	Manufacturer	Description
PE42524	pSemi	RF Switch, SPDT. 0.01 to 40 GHz, 0.6- 5.5 dB IL, 33- 84 dB Isolation, 32.5 dBm Pwr Rating, Flip Chip

Package Format

Description	Units Per Format	Available

The part PE42523 is discontinued, would you like to check out the suggested replacement part?

Part Function	Part Number	Description
Replacement	PE42524 pSemi	RF Switch, SPDT. 0.01 to 40 GHz, 0.6- 5.5 dB IL, 33- 84 dB Isolation, 32.5 dBm Pwr Rating, Flip Chip
