UltraCMOS® SPDT RF Switch

Home>> RF Switch>> PE42556

UltraCMOS® SPDT RF Switch

PE42556

RF Switch, SPDT, 0 to 13.5 GHz, 0.92 to 1.06 dB IL, 43.5 to 46 dB Isolation, 30 dBm Pwr Rating, , Flip Chip

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

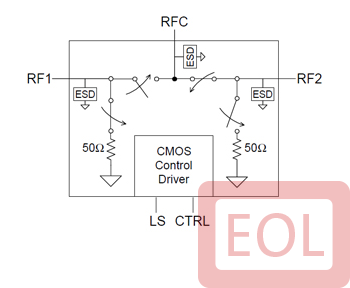

Part number PE42556 Product Type RF Switch from Manufacturer pSemi

Description:

END OF LIFE

The functional replacement of the PE42556 is the PE42520. Please contact your local sales representative with any questions.

The PE42556 RF Switch is designed for use in Test/ATE, cellular and other wireless applications. This broadband general purpose switch maintains excellent RF performance and linearity from 9kHz through 13500 MHz. The PE42556 integrates on-board CMOS control logic driven by a single-pin, low voltage CMOS control input. It also has a logic select pin which enables changing the logic definition of the control pin. Additional features include a user defined logic table, enabled by the on-board CMOS circuitry. The PE42556 also exhibits excellent isolation of 26 dB at 13500 MHz, fast settling time, and is offered in a tiny flip-chip package. Peregrine's HaRP™ technology enhancements deliver high linearity and excellent harmonics performance with the economy and integration of conventional CMOS.

Part Number:

PE42556

Type >>RF Switch:

Single Pole

Function:

SPDT (A)

Impedance:

50 Ohms

Frequency Range Min:

0.009 MHz

Frequency Range Max:

13500 MHz

Insertion Loss Min:

0.85 dB

Insertion Loss Max:

1.74 dB

Isolation Min:

17.5 dB

Isolation Max:

88.5 dB

Power Rating:

33 dBm

IIP3:

56 dBm

Package:

Flip Chip

Descriptions:

Broadband

	Datasheet	Product specification datasheet
	S-Parameters	S-Parameters zip file
	Schematic/B.O.M.	Evaluation Kit Schematic and Bill of Materials
	Material Declaration	Material Declaration form

Part Function	Part Number	Description
Complementary Product	PE42520 pSemi	RF Switch, SPDT, 9 kHz to 13 GHz, 0.7 dB IL, 17 to 54 dB Isolation, 36 dBm Pwr Rating, QFN
